Gray Fast-Cure 2-Part Methacrylate Adhesive

MIS Marine Adhesive Cartridge with One Mixer ~ Applicator Gun Sold Separately

Description
MIS Marine has collaborated with a premier adhesives manufacturer in the USA to create this fast-cure 2-part plastic epoxy methacrylate adhesive. The light gray color of this structural adhesive makes it particularly suitable for bonding aluminum substrates without leaving noticeable glue marks.

This fast-cure gray epoxy adhesive can be utilized to quickly and securely bond a diverse range of materials. Applications for this gray methacrylate adhesive encompass various marine-related projects, including signage fabrication.

Discover the benefits of methacrylate adhesives in our blog and read our article on structural bonding versus mechanical fastening.

We provide a tailored range of product formulations and cartridge types to align with nearly any competitor's product. Please reach out to us for accurate product cross-referencing.

General Specifications

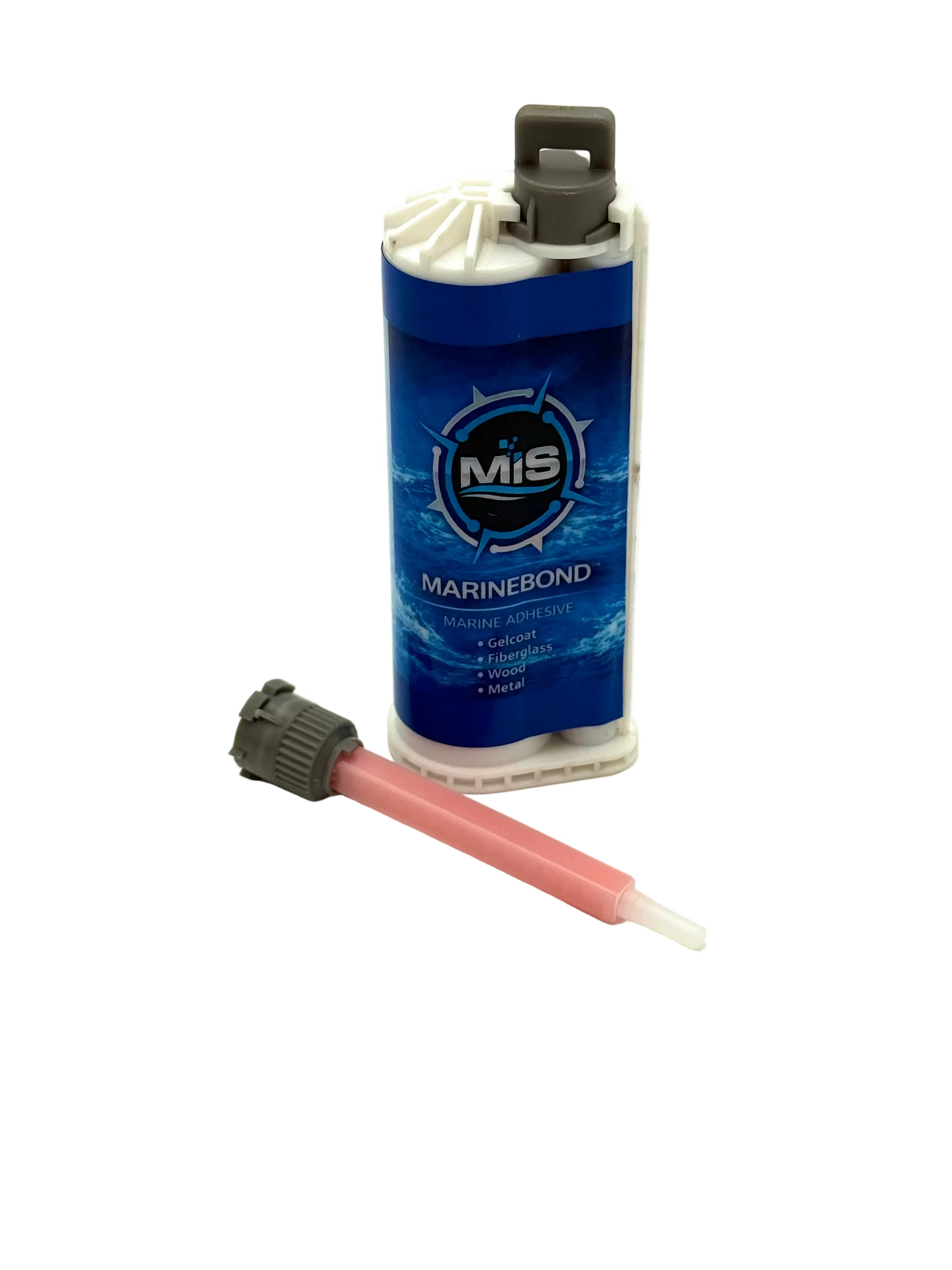

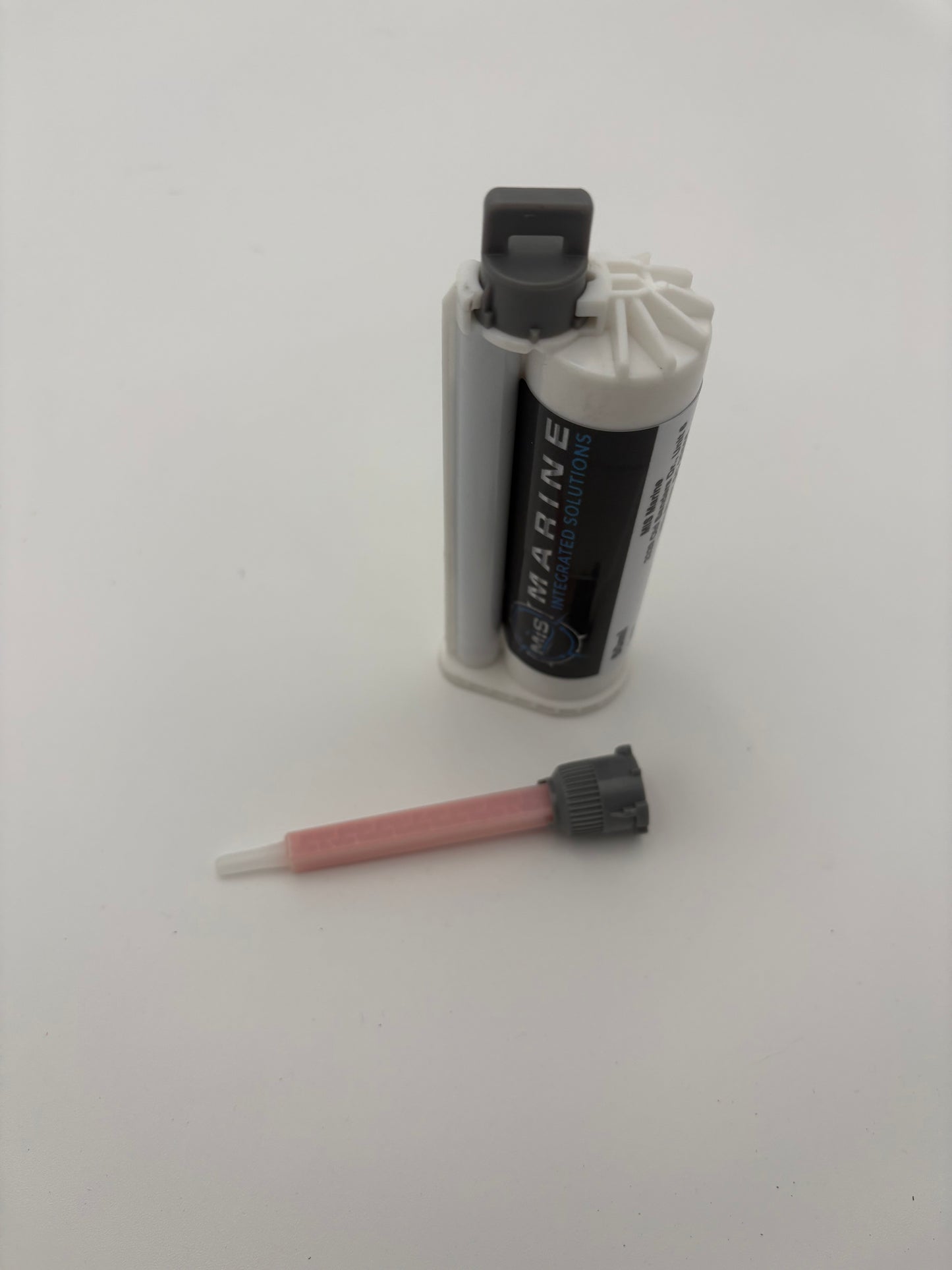

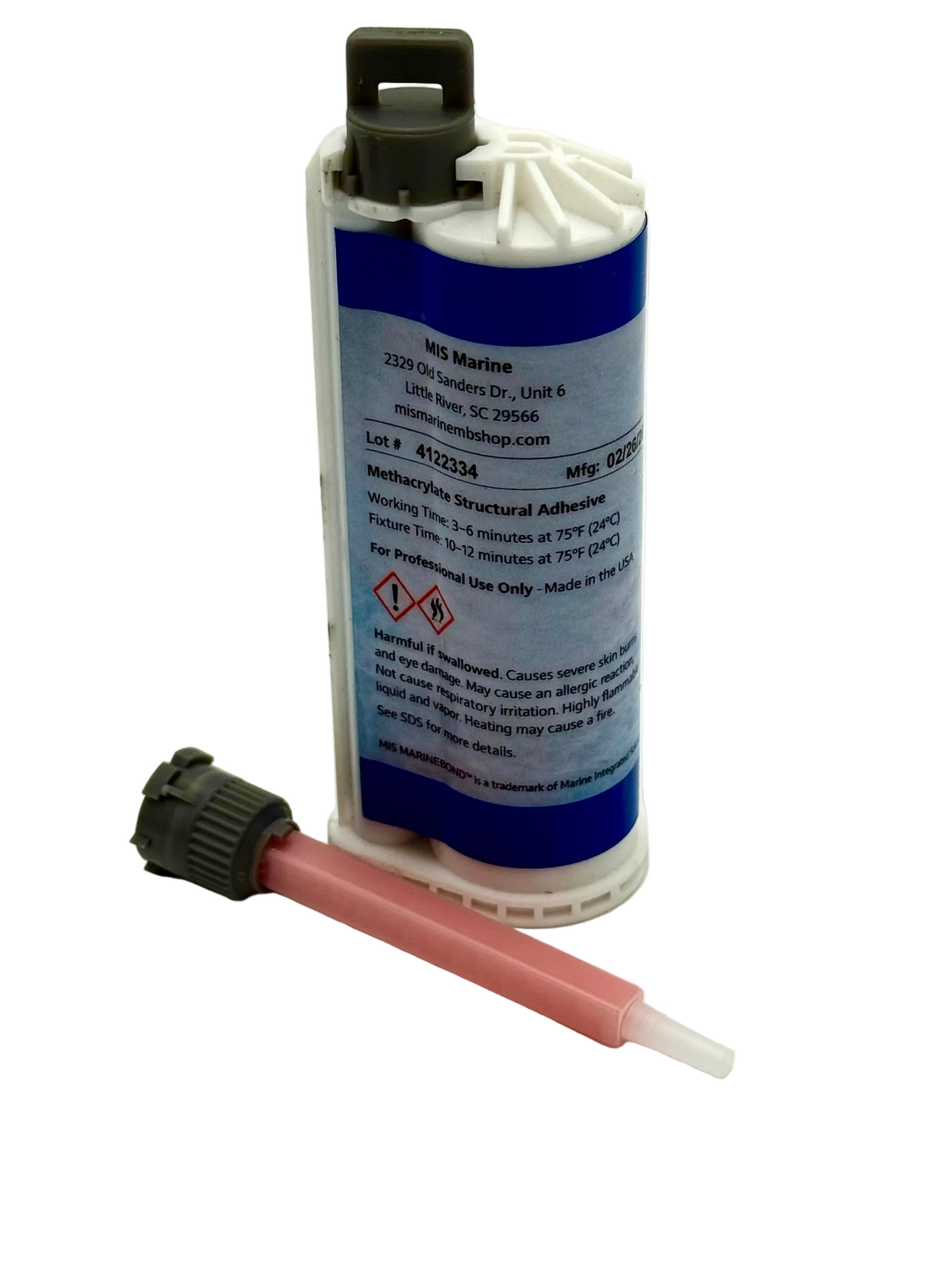

Contents: MIS Marine adhesive cartridge with one static mixer
Cartridge volume: 50ml
Cartridge type: 10:1 Mix / S-System (B-System mixer with round flange)
Color: Light gray
This cartridge requires a reusable dispensing gun. Please order from the accessories listed below.
Static mixers are disposable and are effective for the curing duration of the glue. Additional mixers can be ordered from the accessories listed below.

Technical Data
1. CHARACTERISTICS

*Room Temperature Cure Properties*
- Working time: 2 to 4 minutes at 75°F (24°C)
- Fixture time: 7 to 10 minutes at 75°F (24°C)
- Can be moved in: 12 to 18 minutes
- Operating temperature: 65°F to 85°F (18°C to 30°C)
- Gap filling: 0.50 inches (12.7mm)
- Mixed density: 8.1 lbs/gal (0.96 g/cc)
- Elongation: Greater than 100%
- Flash point: 51°F (11°C) - Refer to SDS for safety information

2. CHEMICAL RESISTANCE

*Excellent Resistance To*
- Hydrocarbons
- Acids and bases
- Vinegar
- Wine and condiments
- Most household foods

*Susceptible To*
- Polar solvents
- Super strong acids and bases

3. PHYSICAL PROPERTIES

*Uncured (Resin / Activator)*
- Viscosity (cps): 150,000-150,000 / 40,000 - 80,000
- Color: Amber / White or various
- Density (lbs/gal): 8.2 / 8.5
- Mix ratio (weight or volume): 10 / 1
- Mixer recommendation: 250/490ml MFQX 08-24T

4. MECHANICAL PROPERTIES

*Tensile Strength in PSI (ASTM D638)*
- Fiberglass surface: 2,500+ (Substrate failure)
- ABS/PVC sheeting: 1,000+ (Substrate failure)
- Steel/Stainless steel: 3,000 - 3,500 (Cohesive failure)
- Aluminum: 3,000 - 3,500 (Cohesive failure)
